Fiber Transition Case Gen 3 (FTC3)
The Fiber Transition Case 3 (FTC3) sets a new standard for streamlined fiber management and installation. Engineered with patent-pending Tilt Technology, the FTC3 allows technicians to test circuits post-installation without disruption, helping improve efficiency and reliability.

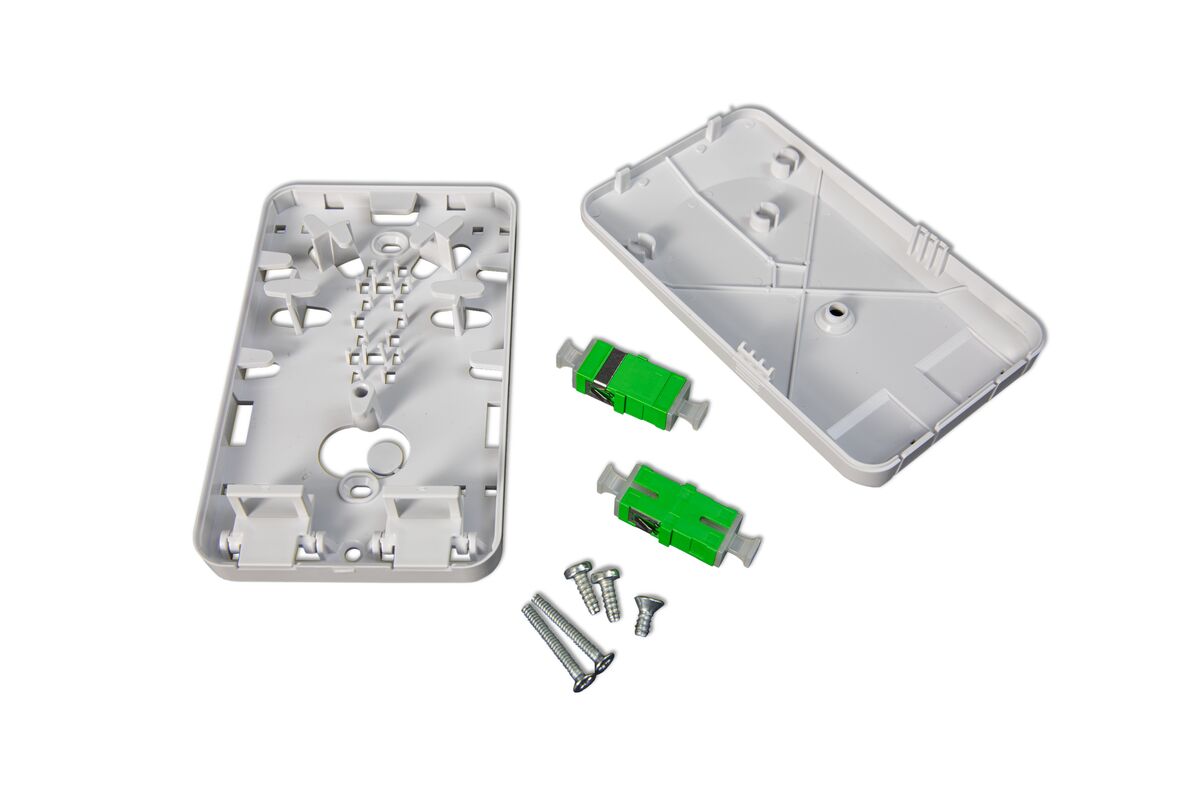

Its integrated SC/APC adapter and generous internal space accommodate up to 1 meter of 3.0 mm fiber cable while supporting either two fusion splices or a single mechanical splice. Break-off tabs allow installers to configure the FTC3 in the field to accommodate one- or two-fiber installations.

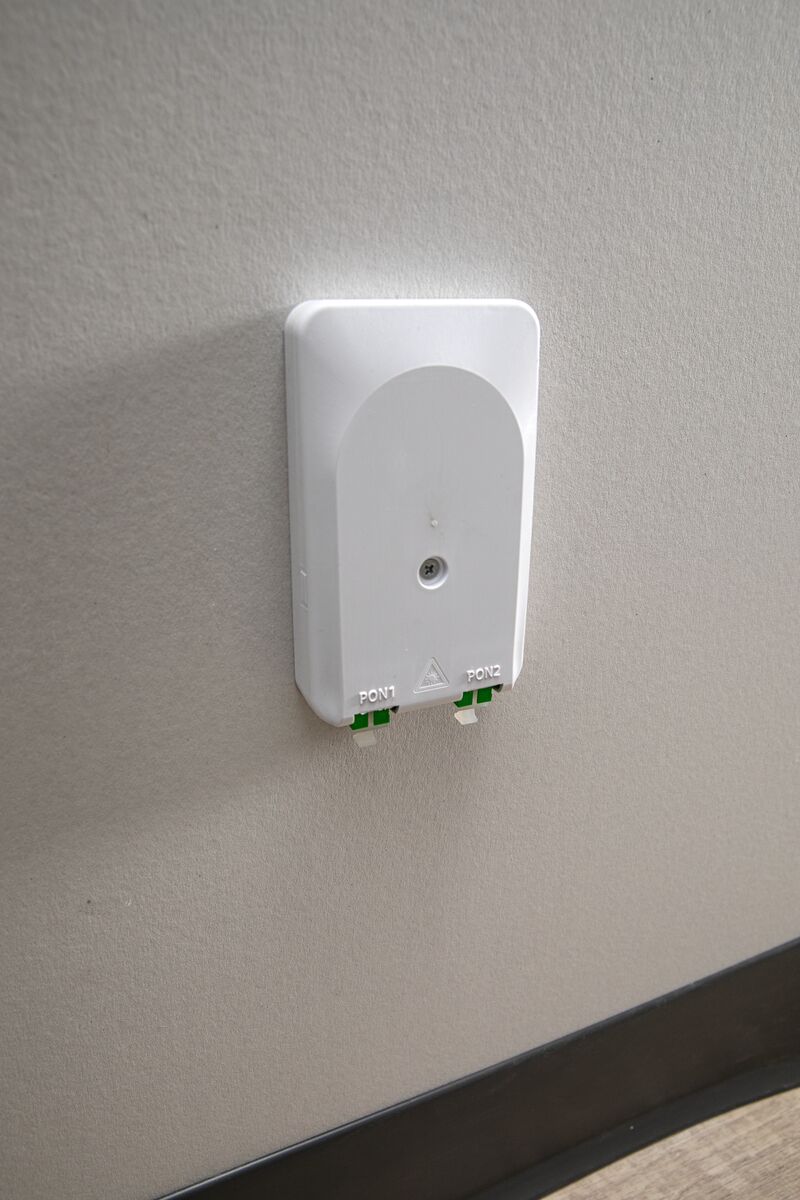

Designed with both aesthetics and practicality in mind, the FTC3 blends seamlessly into a variety of environments. Its low-profile design minimizes wall protrusion, helping reduce accidental interference while maintaining a clean, professional appearance.
Product Features
- Corner Knockouts – Easy cable entry and egress from any of the four corners for versatile routing.
- Splice Capacity – Holds up to two fusion splices and one mechanical splice for FTTH adaptability.
- Cable Tie Mounts – Secure cables neatly, reducing strain and improving organization.

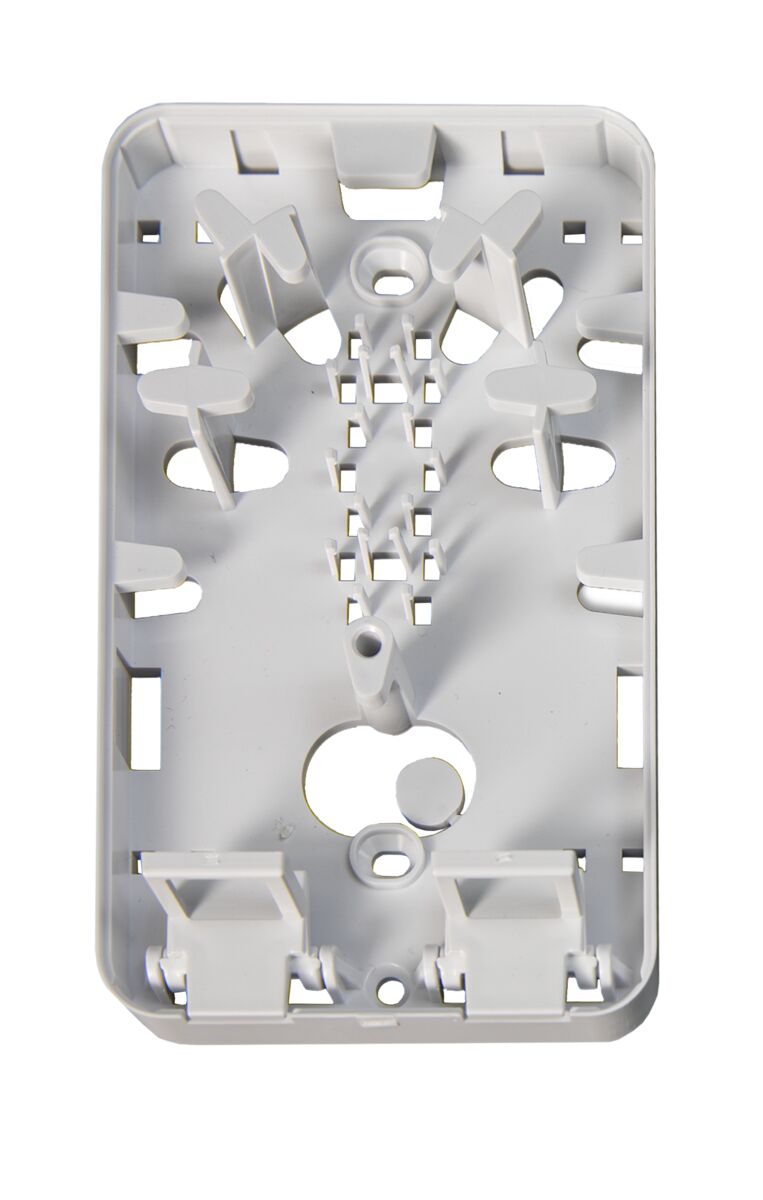

- Ribbed Internal Design – Facilitates storage for 900µm fiber and up to 3.0 mm cable.
- Generous Cable Storage – Stores up to 1 meter of 3.0 mm diameter cable for service loops.
- Low-Profile Aesthetic Cover – Blends into surroundings and helps prevent accidental interference.
- Security Features – Includes a security screw and screw cap for tamper resistance.
- Tilt Technology (patent-pending) – Enables post-installation circuit testing without disassembly.
- Embossed Port Identification – “PON1” and “PON2” markings allow for quick and accurate port recognition.
- Branded Design – Features an embossed logo for compliance and brand integrity.
- Flexible Mounting Options – Mounts directly to the wall, over an existing outlet cavity with a low-voltage mounting bracket, or directly into the Primex SOHO PRO Media Panel.
